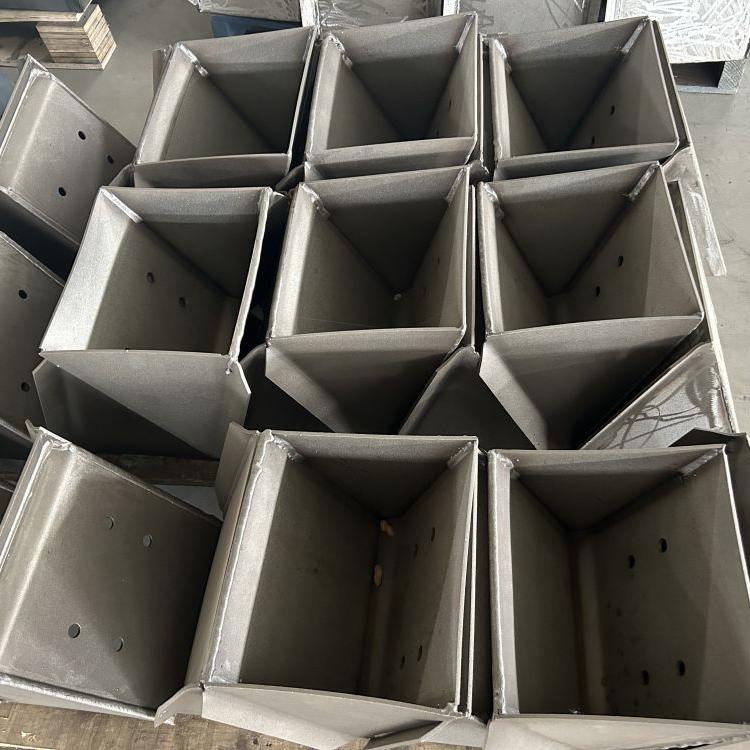

Steel Conveying Buckets for Conveyor and Elevator System
Feature:
1. Use mono-bloc pressed technique and deeply stretching method to get better overall strength.
2. High surface hardness, applicable for the transportation of sharp edge material.
3. Smooth surface and idealist shape for cleaning discharge.
4. High overall strength, suitable for elevating bulk material with high gravity weight.
Usage:
1. Suitable for high-speed centrifugal discharge.
2. Recommended minimum bucket spacing: Width of the bucket projection "B"+25mm, which can be appropriately reduced according to elevator capacity require
3. Recommended elevator line speed ≤ 2.5m/s.
4. Recommended using "(Z-Y)+10%" as the available capacity for engineering design.
5. They can be used together with existing plastic buckets, in that case balance need to be considered.
| Model | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | No. of Holes | Diameter of Holes | Capacity(L) (X-Y) | Capacity (L) (Z-Y) + 10% |
Capacity(L) (Z-Y) |
| D0808 | 85 | 80 | 58 | 16 | 43 | 2 | 8 | 0.21 | 0.19 | 0.18 |
| D1009 | 106 | 89 | 66 | 20 | 50 | 2 | 9 | 0.33 | 0.28 | 0.25 |
| D1312 | 138 | 120 | 88 | 25 | 70 | 2 | 9 | 0.82 | 0.7 | 0.64 |
| D1612 | 170 | 130 | 124 | 35 | 100 | 2 | 9 | 1.31 | 0.98 | 0.89 |
| D1614 | 168 | 147 | 112 | 30 | 100 | 2 | 9 | 1.58 | 1.32 | 1.20 |
| D1814 | 188 | 147 | 112 | 30 | 100 | 2 | 9 | 1.77 | 1.52 | 1.38 |
| D2314 | 234 | 147 | 112 | 32 | 120 | 2 | 9 | 2.30 | 1.96 | 1.78 |
| D2814 | 288 | 147 | 112 | 32 | 100 | 3 | 9 | 2.91 | 2.49 | 2.26 |
| D2015 | 208 | 152 | 112 | 32 | 100 | 2 | 9 | 2.00 | 1.68 | 1.53 |
| D2316 | 234 | 160 | 122 | 32 | 70 | 3 | 9 | 2.70 | 2.31 | 2.10 |
| D2616 | 264 | 165 | 128 | 35 | 80 | 3 | 11 | 3.28 | 2.81 | 2.55 |
| D2816 | 288 | 165 | 130 | 38 | 80 | 3 | 10.5 | 3.64 | 3.10 | 2.82 |
| D3016 | 308 | 165 | 135 | 36 | 100 | 3 | 9 | 3.88 | 3.20 | 2.90 |
| D3316 | 340 | 165 | 135 | 38 | 110 | 3 | 11 | 4.40 | 3.85 | 3.50 |
| D3516 | 361 | 167 | 130 | 38 | 89 | 4 | 11 | 4.50 | 4.02 | 3.65 |
| D2818 | 290 | 182 | 138 | 38 | 80 | 3 | 11 | 4.50 | 3.85 | 3.50 |
| D3018 | 308 | 182 | 140 | 36 | 100 | 3 | 9 | 4.50 | 3.85 | 3.50 |
| D3318 | 340 | 182 | 140 | 38 | 110 | 3 | 11 | 5.20 | 4.40 | 4.00 |
| D3518 | 362 | 182 | 140 | 38 | 120 | 3 | 11 | 5.50 | 4.51 | 4.10 |
| D3718 | 385 | 195 | 140 | 38 | 89 | 4 | 11 | 6.40 | 5.39 | 4.90 |
| D3021 | 310 | 218 | 163 | 50 | 100 | 3 | 11 | 6.70 | 5.72 | 5.20 |
| D3321 | 340 | 215 | 163 | 50 | 120 | 3 | 11 | 7.20 | 6.22 | 5.65 |
| D3521 | 362 | 215 | 162 | 50 | 120 | 3 | 11 | 7.60 | 6.45 | 5.86 |
| D3721 | 383 | 218 | 160 | 50 | 89 | 4 | 11 | 8.60 | 7.13 | 6.48 |
| D4521 | 464 | 215 | 163 | 50 | 89 | 5 | 11 | 10.10 | 8.47 | 7.70 |
| D5021 | 515 | 215 | 163 | 50 | 100 | 5 | 11 | 11.25 | 9.80 | 8.91 |

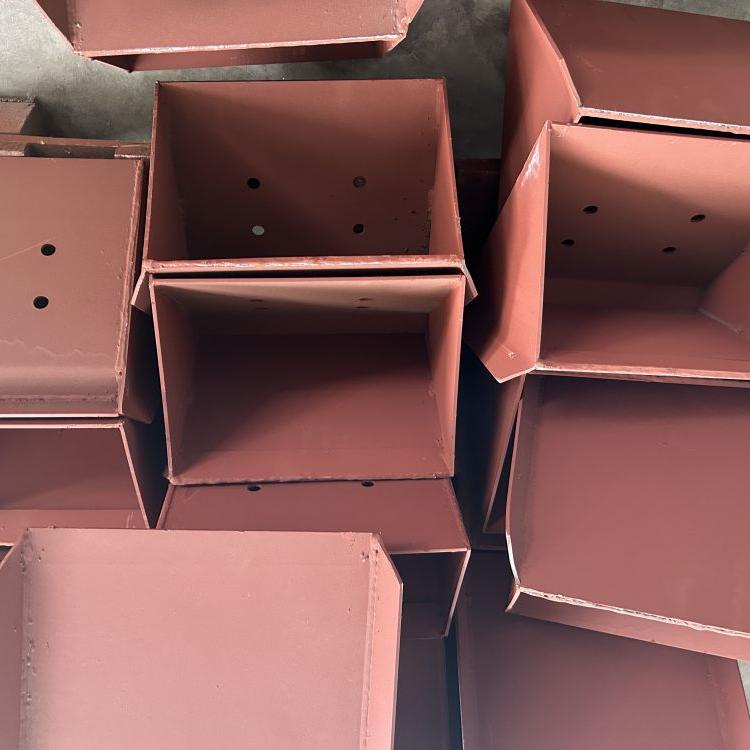

The NE30 bucket elevator is a single row chain style, with a lifting capacity of 30 cubic meters per hour, a hopper width of 300mm, a volume of about 7L, and a hopper spacing of 304.8mm.
The drawing size of the hopper of the NE30 bucket elevator can be used as a reference. Board thickness 3mm, mounting hole, 60*120mm.
NE type plate chain bucket elevator is a new product developed by introducing advanced technology from abroad. The main technical parameters meet the standards of the Ministry of Machinery (JB3926-85). It adopts self-flowing loading and gravity unloading. The chain is high-quality alloy steel high-strength leaf chain, which is wear-resistant and reliable. The driving part adopts hard tooth surface reducer. There are 11 models of NE series plate chain bucket elevators: NE15, NE30, NE50, NE150, NE200, NE300, NE400, NE500, NE600, NE800.
Among them, NE15 and NE30 are single-row chain styles, and NE50 and above models are double-row chain styles.
