Solids Handling Water Sealed Scraper Conveyor

Short Description:

GZS series scraper conveyor is a continuous conveying mechanical equipment for conveying powder, small particles and small lumps of wet materials. It is arranged horizontally and is mainly used in the boiler ash output system.


Product Detail

GZS600 Parameter

GZS750 Parameter

Product Tags

Structural features and working principle

1.GZS series scraper conveyor is composed of head part, middle trough body, tail part, scraper conveyor chain, driving device and installation bolster beam.
2.Fully enclosed or semi-enclosed casing, no material leakage when the equipment is running; the conveyor chain adopts high-quality plate chain, double-chain arrangement; the equipment inlet and outlet, and the length of conveying can be flexibly designed and arranged according to process requirements.
3.The material enters the bottom of the tank evenly through the feeding port of the equipment, and is continuously and evenly transported from the feeding port to the discharge port by the load-bearing scraper conveyor chain that runs continuously from the tail to the machine head.
4.It can realize multi-point feeding and single-point unloading.
5.The machine head is equipped with a screw adjusting device to adjust the tightness of the conveying chain to ensure that it is always in a moderately tensioned state during operation, so that the equipment is in a stable operating state.

Product Detail

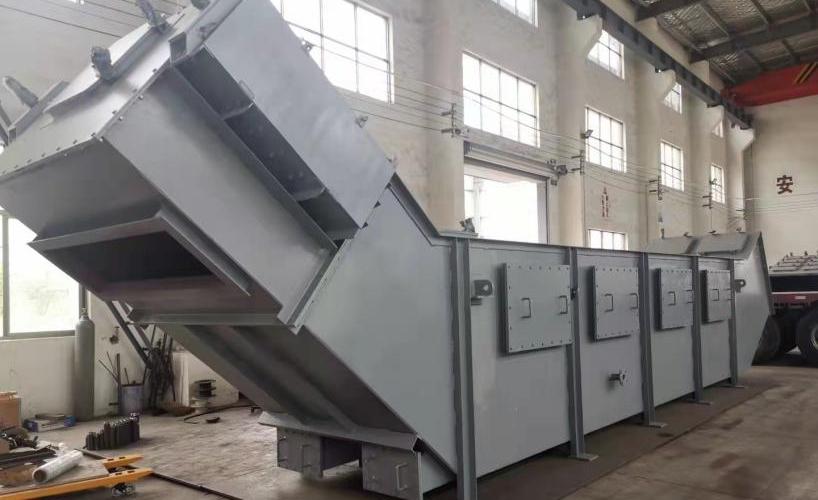

water sealed chain conveyor (1)

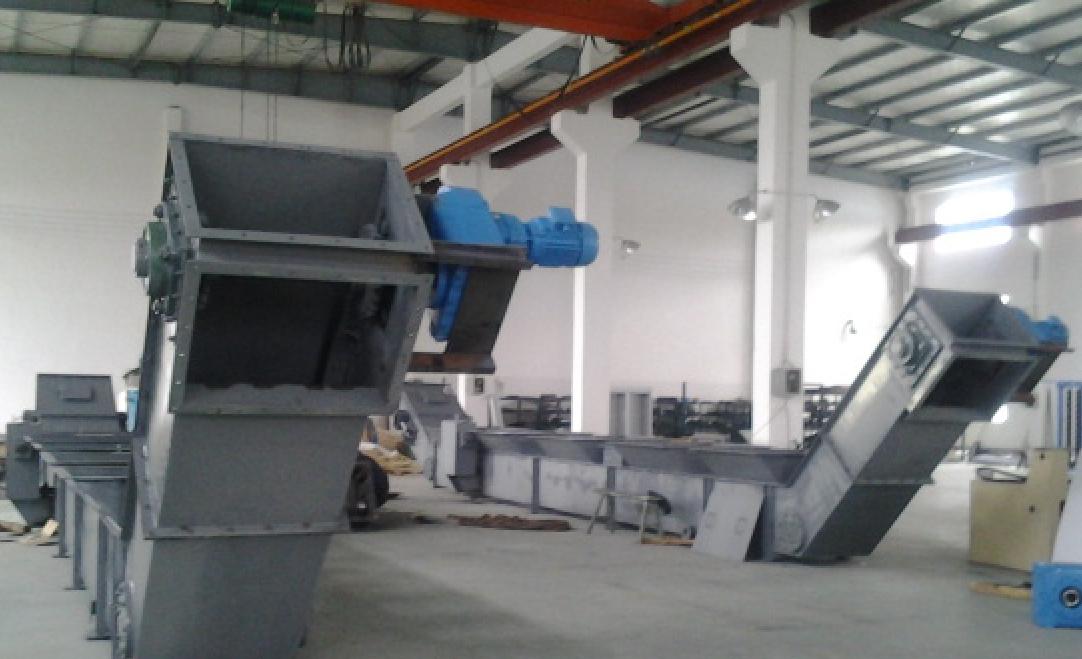

water sealed chain conveyor (2)

Application

It is arranged horizontally and is mainly used in the boiler ash output system.


  • Previous:
  • Next:

  • Model

    GZS600

    Chute Width (mm)

    600

    Capacity (m3/h)

    5~30

    Chain Speed (m/min)

    1.8-10

    Scraper Spacing(mm)

    480/420

    Conveyor Length (m)

    6~40m

    Motor Power (Kw)

    4.0-30.0

    Drive Installation Type

    Back Mounted (Left/Right)

    Transmission Type

    Chain Drive

    Ideal Granularity (mm)

    <70

    Maximum Humidity (%)

    ≤60%

    Maximum Temperature(˚C)

        ≤150˚C

    Model

    GZS750

    Chute Width (mm)

    750

    Capacity (m3/h)

    7~40

    Chain Speed (m/min)

    1.8-10

    Scraper Spacing(mm)

    560/480

    Conveyor Length (m)

    6~40m

    Motor Power (Kw)

    5.5-37.0

    Drive Installation Type

    Back Mounted (Left/Right)

    Transmission Type

    Chain Drive

    Ideal Granularity (mm)

    <100

    Maximum Humidity (%)

    ≤60%

    Maximum Temperature(˚C)

        ≤150˚C

    Note: the parameter above is just for reference, it can be customized by different requirement.
