NE Series Plate Chain Bucket Elevator

Short Description:

1.NE series plate chain bucket elevator is suitable for conveying powdery, granular, small abrasive or non-abrasive materials, such as raw meal, cement, coal, limestone, dry clay, clinker, etc., the material temperature Control below 250°C.
2.This series of elevators adopts inflow feeding and induction unloading; the material flows into the hopper and is lifted to the top by the plate chain, and unloads automatically under the action of material gravity.
3. NE type plate chain bucket elevator is a new type of lifting product developed by introducing foreign advanced technology


Product Detail

Product Tags

Product Detail

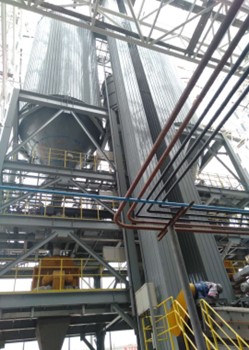

NE Series Plate Chain Bucket Elevator (1)

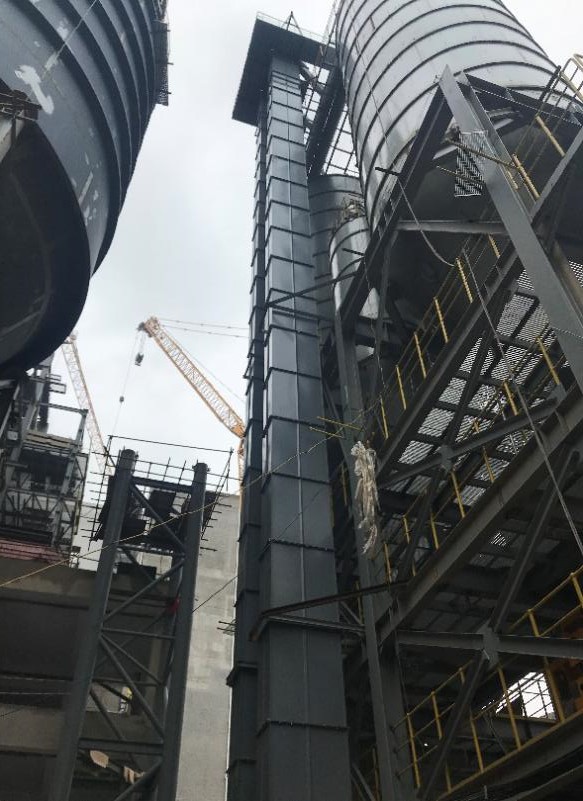

NE Series Plate Chain Bucket Elevator (2)

The bucket elevator is suitable for lifting from low to high. After the supplied materials are put into the hopper through the vibrating table, the machine automatically runs continuously and transports upward.
The hopper scoops up the materials from the storage below, and with the conveyor belt or chain lifting to the top, it turns down after bypassing the top wheel, and the bucket elevator dumps the materials into the receiving tank. The drive belt of bucket elevator with belt drive generally adopts rubber belt, which is installed on the lower or upper drive drum and the upper and lower change direction drum. Chain driven bucket elevator is generally equipped with two parallel transmission chains, with a pair of transmission sprockets at the top or bottom and a pair of reversing sprockets at the bottom or top. Bucket elevator is generally equipped with a casing to prevent dust flying in the bucket elevator.

Advantage

Bucket elevator is a kind of conveying equipment for vertically lifting materials. It has the advantages of simple structure, low maintenance cost, high conveying efficiency, high lifting height, stable operation and wide application range.
NE Series Plate-Chain Bucket Elevator is applicable for vertical transporting of powder, bulk and all other materials. It replaces traditional fish-out feeding with flow-into feeding. It is an upgraded product instead of traditional bucket elevator.

Features & Technical requirements

1. Flow-into feeding can make that there is hardly extrusion and impact happening among all parts of conveyor and materials. It runs stably and it's easy to maintain.
2. Transporting Chain can replace point-contact ring chain with face-contact plain chain. It can greatly increase lifetime, which can come up to more than 5 years.
3. Flow-into feeding, gravity-inducing discharge, the low bucket, the high line speed(15-30m/min) and no feedback. The power is only about 40% of the ones of normal ring-chain bucket elevator.
4. High operation rate, and the time of trouble proof running can reach more than 30, 000 hours.
5. The capacity is as big as 15-800 m3/h.
6. There is little leakage, and little pollution for environment.
7. It's easy to operate and maintain. There is a few wearing parts.

Application

NE series plate chain bucket elevator is suitable for conveying powdery, granular, small abrasive or non-abrasive materials, such as raw meal, cement, coal, limestone, dry clay, clinker, etc., the material temperature Control below 250°C.
