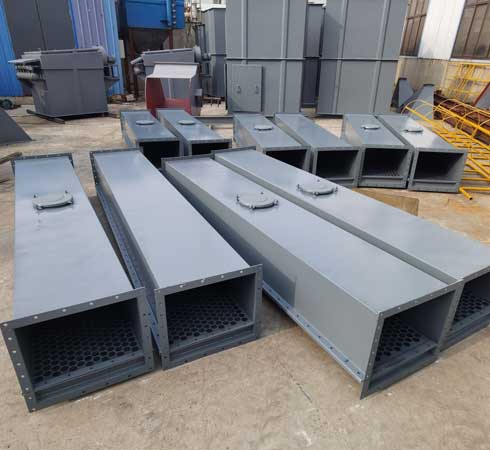

Air slide or air slide conveyor is a kind of pneumatic conveying equipment for conveying dry powder materials, which can transport powder materials with particle size of 3-6 mm or less. In the cement industry, air slide conveyor is often used to transport cement, fly ash, and raw materials. So, it is known as air slide in cement plant.
Air slide is widely used in conveying materials because it has many advantages, including no rotating parts, easy maintenance, good sealing, no noise, safe and reliable operation, less power consumption, convenient to change the direction of transmission, and cement air slide can be multi-point feeding and multi-point unloading.
Air slide is a fluidized bed conveying equipment, which is composed of two upper and lower fluted shells. There is a breathable layer between the shells with wear resistance, high temperature resistance and good breathability. The whole shell is arranged at a certain slope, and the materials are added to the upper shell by the feeding equipment. The aerated material flows forward along the slope to achieve the purpose of conveying,
Slope is one of the necessary conditions for material flow in the tank, small slope is conducive to process design, large slope is conducive to material flow, saving power investment.
The main component of the air slide conveyor is a breathable layer, also called air slide fabric, using PETS-6(polyester) type synthetic fiber fabric, is a new breathable type, it has high temperature resistance (up to 150℃), corrosion resistance, wear resistance, low moisture absorption, light weight, flat surface, long service life and other advantages.
advantages of air slide conveyor
Direct delivery of bulk materials, no packaging, high efficiency, large throughput;
The equipment has simple structure, small footprint, no rotating parts in the main part, light weight, long service life, and a large reduction in maintenance costs;
Less operators, can achieve full automatic remote control management, less cost;
The transmission pipeline can be flexibly arranged to rationalize the plant equipment configuration;
It can not only guarantee the conveying material from moisture and dirt, but also reduce dust flying and improve environmental health;
The materials can be mixed at the same time during the transport process, graded drying, heating or cooling;
It can easily achieve centralized, dispersed, large height, long distance and other types of transportation.
specification of air slide conveyor
Model
XZ200
XZ250
XZ315
XZ400
XZ500
XZ630
XZ800
Groove width
m m
200
250
315
400
500
630
800
Delivery capacity
a=4°
Cement
T/h
22
40
70
130
220
320
400
Raw material
16
30
55
100
165
245
310
a=6°
Cement
40
65
120
250
400
610
765
Raw material
30
55
90
185
300
455
565
a=8°
Cement
50
80
140
300
470
720
900
Raw material
35
65
110
225
355
540
670
a=10°
cement
60
100
170
380
570
900
1080
Raw material
45
80
140
285
425
670
800
a=12°
Cement
70
120
205
455
685
1080
1295
Raw material
50
95
165
340
510
805
960
Groove length
Standard section
m m
2000
Non-standard section
m m
250
Required wind pressure
KPa
4-5.5
Air requirement
m3/m2.min
1.5-2
Breathable layer
Material
synthetic fibre
Thickness
m m
4-6
Temperature
℃
150
Radial breaking strength
N/cm width
4700
Resistance
Pa
800-1200(2m3/m2.min)
